Heavy Duty Machınes

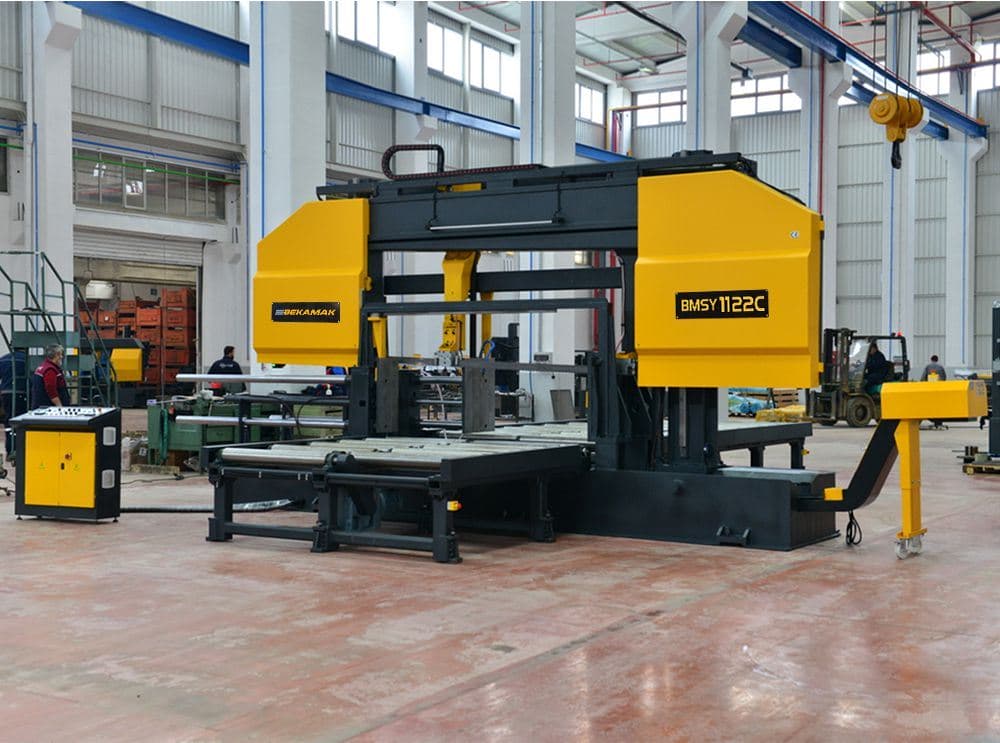

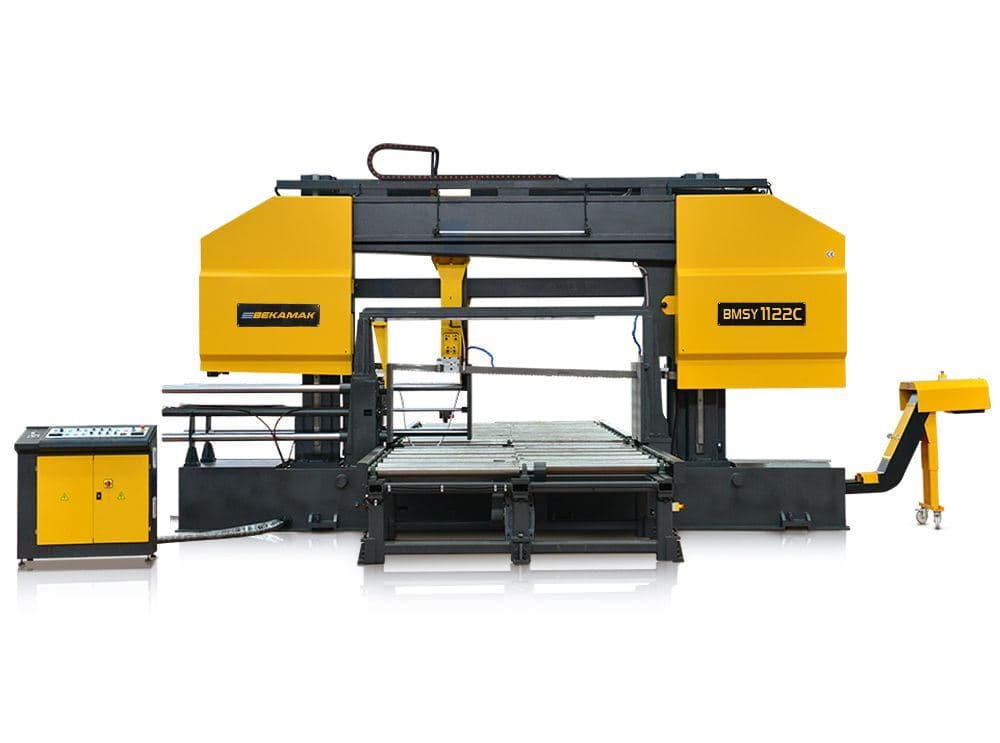

BMSY-1122C
Product Description
Technical Details
Optional Features
Standard Features
Video
Heavy duty semi automatic bandsaw machine
Cutting Capacity
0°
1100 mm
1100x2300 mm
1100 mm
Main Drive Motor
15 kW
Hydraulic Motor
7.5 kW
Coolant Pump
0.2 kW
Rotating Motor
0.55 kW
Cutting Speeds
20 - 100 m/min.
Band Dimensions
13100x80x1,6 mm
Working Height
545 mm
Weight
15700 kg
Length
7700 mm
Width
1250 mm
Height
3400 mm
Second Vice
3 Mt Motorized Material Roller Table
4 Mt Motorized Roller Table
Lazer Line Pointer
ILC Microspray Device
Standard Features
Hydraulic Vice
Security Switch
Inverter
Hydraulic Blade Tention
Synchronisation Moveable Arm/Vice
Control Panel
Chip Conveyor
linear Guides
Heavy Duty Gearbox
Optical Height Adjustment
Saw Blade Brash
Sensitive Pressure
Saw Blade 67
